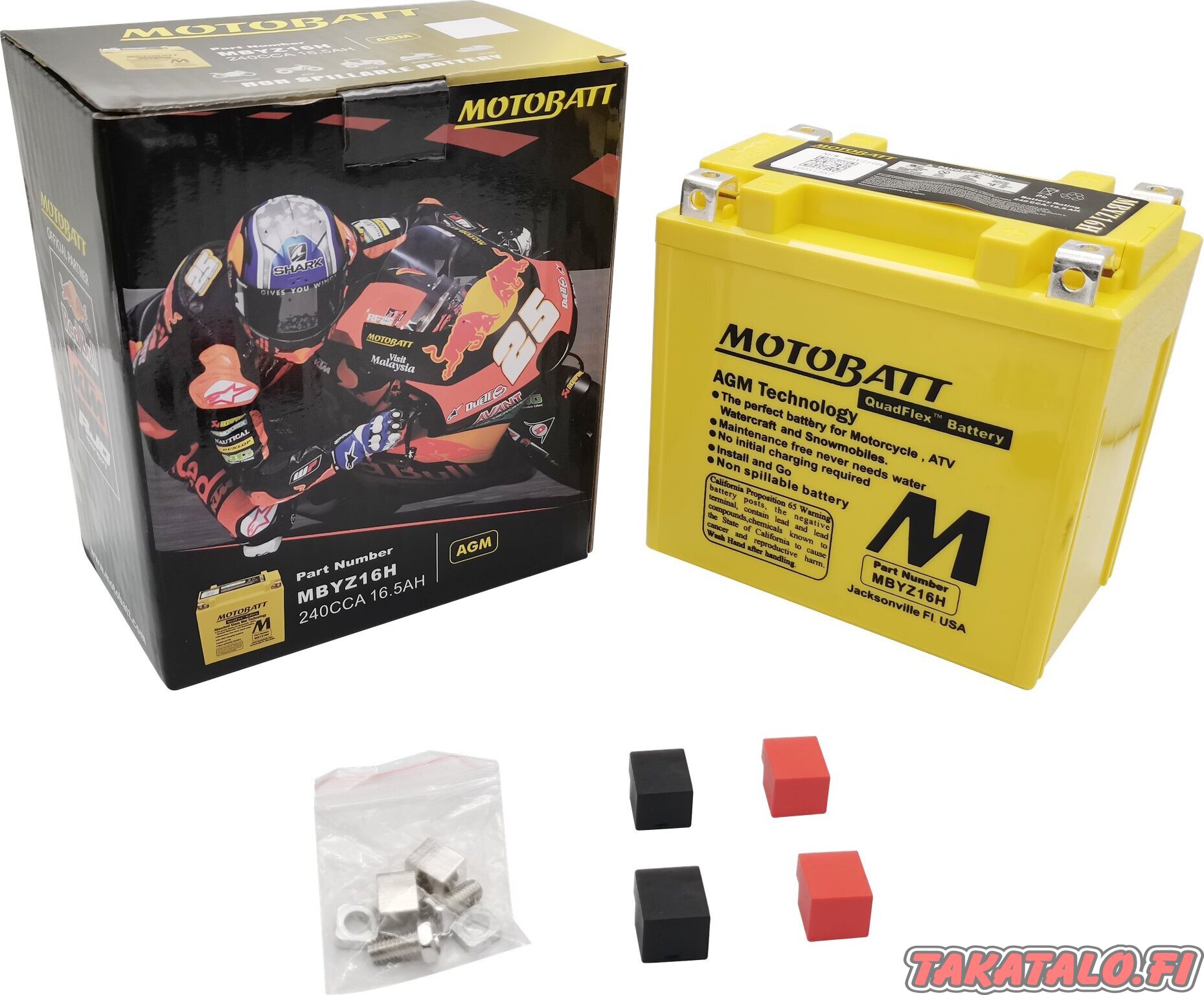

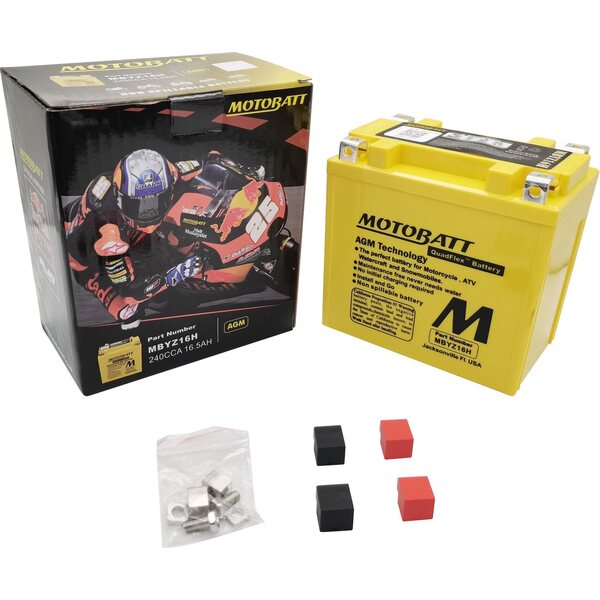

Motobatt MBYZ16H HeavyDuty

MBYZ16H is Motobatt's AGM Quadflex battery, which uses fiberglass mat technology (AGM) to absorb the electrolyte. The battery features four terminals, allowing flexible mounting and wide compatibility with various motorcycle, ATV, and snowmobile models. Factory activated and maintenance-free – ready to install straight away.

Features

• Patented Quadflex four-terminal system: 4 brass terminals for flexible mounting
• Factory activated – no separate activation required before use
• Maintenance-free, sealed AGM construction – no fluid filling or leak risk
• Better vibration resistance and longer service life compared to conventional lead-acid batteries

Technical specifications

• Product code: MBYZ16H
• Voltage: 12V (6 cells)
• Capacity (20h): 17.5 Ah
• Capacity (10h): 16.5 Ah
• Cold cranking amps (CCA): 240A
• Cranking amps (CA): 308A
• Weight: 5.05 kg
• Dimensions (L x W x H): 151 x 87 x 145 mm
• Case material: ABS
• Terminals: 4F, brass terminals (Quadflex system)
• Certifications: US DOT and IATA approved non-spillable battery

The battery replaces/is equivalent to the following battery codes

• GYZ16HL
• GYZ16H
• YTX14
• YTX14BS
• YTX14H
• YTX14HBS
• YTX14L
• YTX14LBS
• KMX14BS

Always check your vehicle's original battery code before ordering to make sure the battery fits your specific model.

FAQ

Does the battery need activation before use?

No. The MBYZ16H is factory activated and ready to install straight out of the box.

Does the battery fit many different vehicles?

Yes. Thanks to the Quadflex four-terminal system, the battery can be installed in several different orientations, and it replaces the battery codes listed above. Confirm compatibility by comparing it with your vehicle's current battery code.
